| PSE认证 JET认证单芯线VSF/HVSF单芯导线 |
|
|
| |
宁波康伯斯电器有限公司供应日本PSE JET认证VSF/HVSF单芯线导线,原厂精益商标,ROHS环保,电线上标记请认准Yuyao Jingyi Electronics co.,LTD
规格为1*0.5,1*0.75,1*1.25,1*2.0
<PS>E JET JingYi VSF 0.5mm2 60℃ -F-
<PS>E JET JingYi VSF 0.75mm2 60℃ -F-
<PS>E JET JINGYI HVSF 1.25mm2 75℃ -F-
<PS>E JET JINGYI HVSF 0.5mm2 75℃ -F-

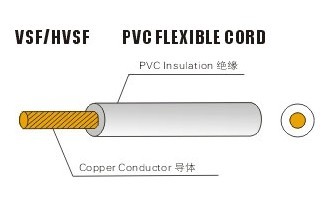

VSF HVSF绝缘电线
| |
 |
| |
| |
|
聚氯乙烯绝缘电线
PVC Insulated Wire |
标准 Standard: JIS C 3306-93 | |
|
|
|
|
|
|
<PS>E JET JingYi VSF 0.5mm2 60℃ -F- <PS>E JET JingYi VSF 0.75mm2 60℃ -F- <PS>E JET JINGYI HVSF 1.25mm2 75℃ -F- <PS>E JET JINGYI HVSF 0.5mm2 75℃ -F- |
|
| ■ 产品说明 |
|
| ● |
额定电压：300V， 额定温：60℃(VSF),70℃(HVSF) |
|
| ● |
导体使用绞线0.3-2.0mm2裸铜丝 |
|
| ● |
PVC绝缘 |
|
| ● |
可通过JIS C3305-4.26.2(b)耐燃试验 |
|
| ● |
使用标准厚度、易剥、易裁 |
|
| ● |
具有耐PS、耐ABS、环保等特性 |
| | |
|
| PRODUCT DESCRIPTION |
|
| ● |
Rated voltage: 300V，Rated temperature:60℃(VSF), 75℃(HVSF) |
|
| ● |
Stranded bare copper conductor, 0.3-2.0mm2 |
|
| ● |
Color-coded PVC insulation |
|
| ● |
Passes JIS C3305-4.26.2(b) flame test |
|
|
● |
Uniform insulation thickness of wire to ensure easy stripping and cutting |
|
| ● |
Ressistant to PS andABS,Conforming RoHS. |
| | | |
|
|
|
|
|
|
| APPLICATION |
|
|
For general purpose internal wiring of electronic and electrical equipment | | | |
|
VSF 60℃，HVSF 75℃ 300V |
|
型号
Style |
导体
Conductor |
绝缘
Insulation |
最大导体电阻
Max Resistance at 20℃ |
最小绝缘电阻
Min Insulation Resistance, MΩ.Km |
耐电压
Dielectric
Strength
AC 1 min |
标准
长度
Standard
Length |
|
标称
截面
Nom. Area |
线数/
线径 |
直径 Dia |
标称厚度 Nom. Thick. |
标称外径 Nom. Dia. |
60℃ VFF |
75℃ HVFF |
|
mm2 |
No./mm |
mm |
mm |
Material |
Ω/Km |
MΩ/Km |
V |
M |
VSF
HVSF |
0.3 |
12/0.18 |
0.7 |
0.8 |
2.3 |
56.0 |
0.01 |
0.005 |
1000 |
500 |
|
0.5 |
20/0.18 |
0.9 |
0.8 |
2.5 |
37.6 |
0.01 |
0.005 |
|
0.75 |
30/0.18
|
1.1 |
0.8 |
2.7 |
24.4 |
0.01 |
0.005 |
|
1.25 |
50/0.18 |
1.5 |
0.8 |
3.1 |
14.7 |
0.01 |
0.005 |
300 |
日规线材的含义
|
Class |
Symbol |
|
|
PVC insulated single core cord |
VSF |
符號標明如下： |
|
Hear-resistant PVC insulated single core cord |
HVSF |
V: 聚氯乙烯 |
|
PVC insulated twin-twisted cord |
VTF |
SF: 單芯軟電線 |
|
Hear-resistant PVC insulated twin-core cord |
HVTF |
TF: 雙芯絞合軟電線 |
|
PVC insulated flat cord |
VFF |
FF: 扁型軟電線 |
|
Hear-resistant PVC insulated flat cord |
HVFF |
CTF: 圓型電線 |
|
PVC insulated cabtyre round cord |
VCTF |
K: 卵型 |
|
Hear-resistant PVC insulated cabtyre round cord |
HVCTF |
H: 耐熱絕緣 |
|
PVC insulated cabtyre oval cord |
VCTFK |
|
|
Hear-resistant PVC insulated cabtyre oval cord |
HVCTFK |
| | | |
|
|
|
|
|
|
|
|
|
|
|
